SEA LION SERIES BIG GAME JIGGING REEL

OSL10
Sea LionSL10LH
Features:
  • 6061 - T6 machined one piece aluminum frame
  • Cold forged aluminum spool and side plates
  • Precision-machined stainless steel gears
  • Heavy duty stainless steel ratcheting clicker system
  • Heavy duty stainless steel drive and spool shaft
  • Contaminant-resistant carbon drag material with special grease
  • Upgraded mechanism for lever drag control and pre-set knob
  • With fulcrum clicker design to stop drag lever backing off
  • Oversized shielded stainless steel ball bearings for better support and strength (8+1 One way bearing design for Single speed models)
  • Newly designed balance handle to minimize the jigging vibration
  • More easy to disassemble for quick service
  • Serialized identification

Dual Drag & True Left-Handed designs now available
Sea Lion Series Two Speed Jigging Reel
  Model Gear Ratio Line Capacity Max Strike Drag
(w/ freespool)		 Max Full Drag
(w/ freespool)		 Ball
Bearings		 2-Speed
Gearing		 Weight
(Lb. Test/Yards) (mm/M)

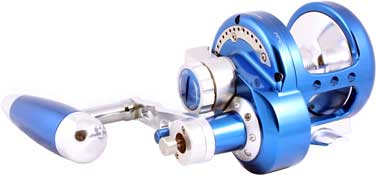

SL08 SL08
schematics (pdf)		 4.5:1/2.2:1 20/330 0.45/300 7.0 KGS 8.5 KGS 8 yes 657 g
SL10 SL10
schematics (pdf)		 4.5:1/2.2:1 20/495 0.50/410 8.0 KGS 10.0 KGS 8 yes 722 g
Sea Lion Series One Speed Jigging Reel
  Model Gear Ratio Line Capacity Max Strike Drag
(w/ freespool)		 Max Full Drag
(w/ freespool)		 Ball
Bearings		 2-Speed
Gearing		 Weight
(Lb. Test/Yards) (mm/M)

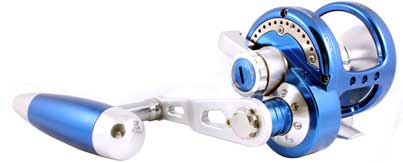

OSL06 OSLO6 schematics (pdf) 4.3:1 20/310 0.40/310 5.0 KGS 6.0 KGS 8+1 no 490 g

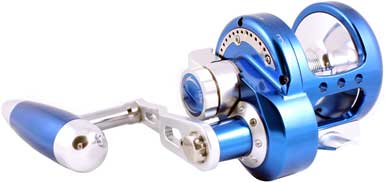

OSL08
 OSL08
schematics (pdf)		 4.5:1 or
5.0:1		 20/330 0.50/410 7.0 KGS 8.5 KGS 8+1 no 619 g

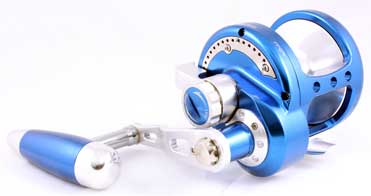

OSL10 OSL10
schematics (pdf)		 4.5:1 or
5.0:1		 20/495 0.50/410 8.0 KGS 10.0 KGS 8+1 no 701 g
Sea Lion Series Dual Drag Jigging Reel
schematics (pdf)    Model Gear Ratio Line Capacity Max Strike Drag
(w/ freespool)		 Max Full Drag
(w/ freespool)		 Ball
Bearings		 2-Speed
Gearing
(Lb. Test/Yards) (mm/M)
2
Speed		   SL08D schematics (pdf) 4.5:1 2.2:1 20/330 0.45/300 10.0 KGS 12.0 KGS 8 yes
  SL10D schematics (pdf) 4.5:1 2.2:1 20/495 0.50/410 12.0 KGS 14.0 KGS 8 yes
SL11D SL11D schematics (pdf) 4.5:1 2.2:1 20/495 0.50/500 12.0 KGS 14.0 KGS 8 yes
1
Speed		   OSL06D schematics (pdf) 4.3:1 20/310 0.40/310 8.0 KGS 9.6 KGS 8+1 no
  OSL08D schematics (pdf) 4.5:1 20/330 0.50/410 10.0 KGS 12.0 KGS 8+1 no
  OSL10D  schematics (pdf) 4.5:1 20/495 0.50/410 12.0 KGS 14.0 KGS 8+1 no
OSL11D OSL11D schematics (pdf) 4.5:1 20/495 0.50/500 12.0 KGS 14.0 KGS 8+1 no
Sea Lion Series Lefty Jigging Reel
    Model Gear Ratio Line Capacity Max Strike Drag
(w/ freespool)		 Max Full Drag
(w/ freespool)		 Ball
Bearings		 2-Speed
Gearing
(Lb. Test/Yards) (mm/M)
2
Speed		   SL08LH schematics (pdf) 4.5:1 2.1:1 20/330 0.45/310 6.8 KGS 8.6 KGS 8 yes

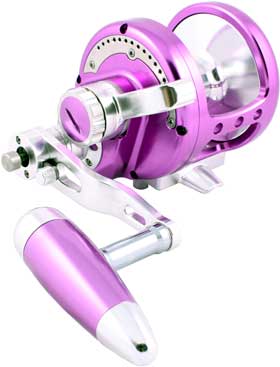

SL10LH SL10LH schematics (pdf) 4.5:1 2.1:1 20/495 0.45/460 7.5 KGS 8.9 KGS 8 yes
1
Speed		   OSL06LH schematics (pdf)  4.3:1 20/310 0.45/280 6.3 KGS 8.0 KGS 8+1 no
  OSL08LH  schematics (pdf) 4.5:1 20/330 0.45/310 6.8 KGS 8.6 KGS 8+1 no
  OSL10LH schematics (pdf) 4.5:1 20/495 0.45/460 7.5 KGS 8.9 KGS 8+1 no
